Home>cayken products>Diamond Core Drill

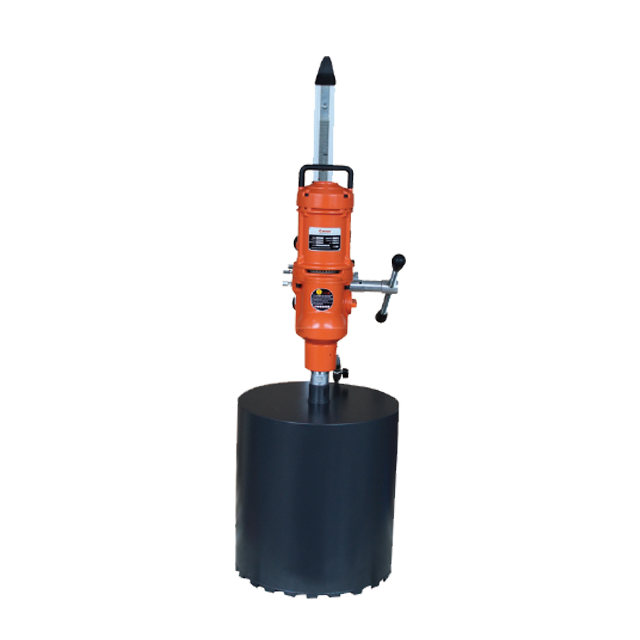

Diamond Core Drill

Adjustable aluminum alloy frame, can be drilling inclined hole 0-45.Light, easy to transport and

install drill frame tight and equipped with wheels.Vacuum base, can quickly, easily set up.Frame

with general fast connecting block, quick installation and is suitable for the majority of products

On the market. Base, frame, the bracket and all adjstabale

screw can be used with the pushing handle attached to adjust.
TECHNICAL PARAMETER
Concrete Drilling Range(mm) Rated Voltage(v) Rated Frequency(Hz)

Rated Input Power(w)

No-load Speed(rpm) Cable length(m) Borehole Depth(mm) Net/Gross Weight(Kgs)
Packing Size(cm)
SCY-4050C ~16”(~405) 110/220~ 50-60 5180 340/530 3.5 600 32/35 104*38*24
SCY-4050CE ~16”(~405) 110/220~ 50-60 5180 100-340/530 3.5 600 32/35 104*38*24
SCY-4050/3C ~16”(~405) 110/220~ 50-60 5180 330/500/660 3.5 600 32/35 104*38*24
SCY-4050/3CE ~16”(~405) 110/220~ 50-60 5180 100-330/500/660 3.5 600 32/35 104*38*24
SCY-4550C ~18”(~455) 110/220~ 50-60 5380 300/470 3.5 600 33/36 104*38*24
SCY-4550CE ~18”(~455) 110/220~ 50-60 5380 100-300/470 3.5 600 33/36 104*38*24
SCY-4550/3C ~18”(~455) 110/220~ 50-60 5380 290/430/580
3.5 600 33/36 104*38*24
SCY-4550/3CE ~18”(~455) 110/220~ 50-60 5380 100-290/430/580 3.5 600 33/36 104*38*24
SCY-5050C ~20”(~505) 110/220~ 50-60 5380 280/420
3.5 600 34/37 104*38*24
SCY-5050CE ~20”(~505) 110/220~ 50-60 5380 100-280/420 3.5 600 34/37 104*38*24
SCY-5050/3CE ~20”(~505) 110/220~ 50-60 5380 280/420/550 3.5 600 34/37 104*38*24
SCY-5050/3CE ~20”(~505) 110/220~ 50-60 5380 100-280/420/550 3.5 600 34/37 104*38*24
